Name: 10V 22µF ±20% 1.65ohm 90mA 2K Hours UZ Series
SKU: UZ226M010HCHTA
Price: 0.29 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

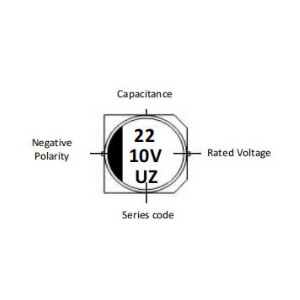

SMD Aluminum Electrolytic Capacitors, Extra low Impedance type UZ series, 2 pads Capacitance: 22µF, Tolerance ±20%, Voltage 10V, Case size: ØD4.0*L5.40mm, Impedance 1.65 Ohm., Ripple Current: 90mA Max. @+105℃, 100KHz Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

Key Features:

Series: UZ
Capacitance: 22µF
Capacitance Tolerance: ±20%
Rated Voltage: 10V
Ripple Current @+105°C, 100KHz: 90mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current: 3.0 (μA)max
Impedance @20℃,100KHz: 1.65ohm Max.

See Full Specification

$0.28500

Out of stock

SKU	UZ226M010HCHTA

Original MPN	CAE226M1AHUZCE4TRC
Datasheet	Data Sheet

Description
Specification

Description

• Polar Aluminum Electrolytic Capacitor (Foil Type)
• High stability and reliability
• Lifetime 2000 Hours @ 105°C
• Designed Capacitor’s Quality Meets IEC60384.
• Applicable To Automatic Mounting Machine
• Cross Competitors Parts and more.
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly General Electronic Circuit, such as power supply, lighting, etc.

Specification

Series	UZ
Capacitance	22µF
Capacitance Tolerance	±20%
Rated Voltage	10V
Case Size	Ø4.00*L5.40mm
Ripple Current @+105°C, 100KHz	90mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz Tanδ Max.	0.19 Tanδ Max.
Leakage Current	3.0 (μA)max
Impedance @20℃,100KHz	1.65ohm Max.
Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	2000pcs/Reel, Quantity entered must be multiple of 2000
NCNR	Non-Cancelable/Non-Returnable
