2000V 2200pF X7R, ±10%, 1808 Series

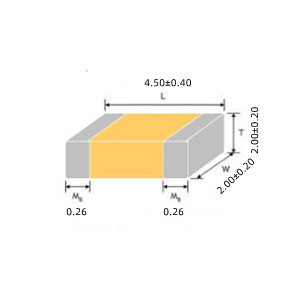

Multilayer Ceramic Chip Capacitors, High Voltage 1808 (4520 Metric) Series, L4.50mm*W2.00mm,Thickness: 2.20mm Max. Dielectric X7R, Capacitance 2200pF, Tolerance ±10%, Rated Voltage 2KV, Operating Temp. Range -55°C ~+125°C

Key Features:
  • Series: 1808 Series
  • Capacitance: 2200pF
  • Capacitance Tolerance: ±10%
  • Case size: L4.50*W2.00*H2.00mm
  • Rated Voltage: 2000V
  • Dielectric: X7R
  • Capacitance Characteristic: ±15%
See Full Specification

$0.39920

Out of stock
SKU 1808B222K202KA
Original MPN1808B222K202KA
Datasheet Data Sheet

Description

Multilayer Ceramic Chip Capacitors, High Voltage 1808 (4520 Metric) Series, L4.50mm*W2.00mm,Thickness: 2.20mm Max. Dielectric X7R, Capacitance 2200pF, Tolerance ±10%, Rated Voltage 2KV, Operating Temp. Range -55°C ~+125°C

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• High capacitance and High Voltage in small size
• Capacitor with lead-free termination (pure Tin)

APPLICATION

• DC to DC converter.
• High voltage coupling/DC blocking
• Back-lighting inverters
• LAN/WLAN interface
• Modem/Power supplies

Specification

Series

1808 Series
Capacitance

2200pF
Capacitance Tolerance

±10%
Case size

L4.50*W2.00*H2.00mm
Rated Voltage

2000V
Dielectric

X7R
Capacitance Characteristic

±15%
Operating Temp. Range

-55°C ~+125°C
Thickness

2.00±0.20mm
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

1000pcs/Reel, Quantity entered must be multiple of 1000
NCNR

Non-Cancelable/Non-Returnable
