20V, 100μF, ±20%, 150mΩ Max. Polymer Case H

SMD Conductive Polymer Tantalum Capacitors, EIA code 7343-20, CA55 Series, Case E, L7.30*W4.30*H2.00mm, Rated Voltage 20 Vdc, Capacitance 100μF, Tolerance ±20%, ESR 150 mΩ Max., Operating Temp. Range -55°C ~+125°C.

Key Features:
  • Series: CA55 Series, Case H
  • Capacitance: 100uF
  • Capacitance Tolerance: ±20%

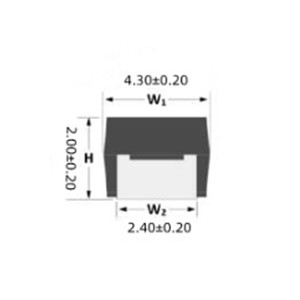

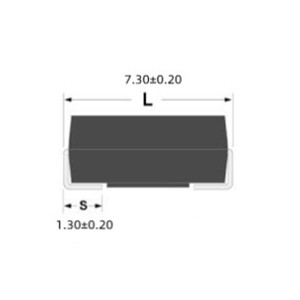

  • Case Size: L7.30*W4.30*H2.00mm
  • Rated Voltage: 20V
  • ESR: 150 mΩ Max
  • Operating Temperature Range: -55°C ~+125°C

$2.15000

Out of stock
SKU CA55H020M107TA
Original MPNCA55-H020M107T
Datasheet Data Sheet

Description

SMD Conductive Polymer Tantalum Capacitors, EIA code 7343-20, CA55 Series, Case E, L7.30*W4.30*H2.00mm, Rated Voltage 20 Vdc, Capacitance 100μF, Tolerance ±20%, ESR 150 mΩ Max., Operating Temp. Range -55°C ~+125°C.

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• Small volume, High Stability
• Good Frequency Characteristic

APPLICATION

• For Surface Mount Consumer Electronic Equipment
• Color TV sets, PC, Mobile Telephone sets Pickup camera Radar etc



Specification

Series

CA55 Series, Case H

Capacitance

100uF

Capacitance Tolerance

±20%

Case Size

L7.30*W4.30*H2.00mm

Rated Voltage

20V

Dissipation Factor

10.0% tgδ Max.

ESR

150 mΩ Max

Operating Temperature Range

-55°C ~+125°C

Mounting Type

SMD type, 2 Pads

RoHS Status

RoHS III Compliant & Halogen Free

Moisture Sensitivity Level (MSL)

1 (Unlimited)

REACH Status

REACH Unaffected

HTSUS

8532.22.0020

ECCN

EAR99

Standard Package (MPQ)

500pcs/reel, Quantity entered must be multiple of 500

NCNR

Non-Cancelable/Non-Returnable
