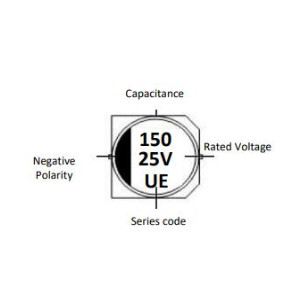

Name: 25V 150µF ±20% 0.43ohm 240mA 2K Hours UE Series
SKU: UE157M025HFKTA
Price: 0.38 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

SMD Aluminum Electrolytic Capacitors Low ESR/Impedance type, UE series, 2 pads Capacitance: 150µF, Tolerance ±20%, Voltage 25V, Case size: Ø8.00*L10.2mm, Impedance 0.43Ω, 2000 Hours Ripple Current: 240mA @ +105℃, 100KHz, Operating Temp. Range -55°C ~+105°C

Key Features:

Series: UE
Capacitance: 150µF
Capacitance Tolerance: ±20%
Rated Voltage: 25V
Ripple Current @+105°C, 100KHz: 240mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current: 37.5(μA)max
Impedance @20℃,100KHz: 0.43ohm Max.

See Full Specification

$0.37500

Out of stock

SKU	UE157M025HFKTA

Original MPN	CAE157M1EHUEFJ2TR
Datasheet	Data Sheet

Description
Specification

Description

• Polar Aluminum Electrolytic Capacitor (Foil Type)
• High stability and reliability
• Lifetime 2000 Hours @ 105°C
• Designed Capacitor’s Quality Meets IEC60384.
• Applicable To Automatic Mounting Machine
• Cross Competitors Parts and more.
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly General Electronic Circuit Etc

Specification

Series	UE
Capacitance	150µF
Capacitance Tolerance	±20%
Rated Voltage	25V
Case Size	Ø8.00*L10.2mm
Ripple Current @+105°C, 100KHz	240mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz Tanδ Max.	0.14 Tanδ Max.
Leakage Current	37.5(μA)max
Impedance @20℃,100KHz	0.43ohm Max.
Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	500pcs/Reel, Quantity entered must be multiple of 500
NCNR	Non-Cancelable/Non-Returnable
