Name: 35V 220µF ±20% 0.23ohm 360mA 2K Hours UE Series
SKU: UE227M035HGKTA
Price: 0.55 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

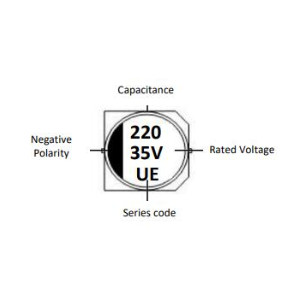

SMD Aluminum Electrolytic Capacitors, Low ESR/Impedance type, UE series, 2 pads Capacitance: 220µF, Tolerance ±20%, Voltage 35V, Case size: : ØD10.0*L10.2mm, Impedance 0.23Ω, 2000 Hours, RC: 360 mA (at 105 ℃,100KHz), Operating Temp. Range -55°C ~+105°C

Key Features:

Series: UE
Capacitance: 220µF
Capacitance Tolerance: ±20%
Rated Voltage: 35V
Ripple Current @+105°C, 100KHz: 360mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current: 77 (μA)max
Impedance @20℃,100KHz: 0.23ohm Max.

See Full Specification

$0.54500

Out of stock

SKU	UE227M035HGKTA

Original MPN	CAE227M1VHUEGJ2TR
Datasheet	Data Sheet

Description
Specification

Description

• SMD Aluminum Electrolytic Capacitors
• Wide Temperature
• Low Impedance & ESR
• Designed For SMD On PCB
• Applicable To Automatic Mounting Machine
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly Electronic Circuit, Power Supply, Lighting, Etc.

Specification

Series	UE
Capacitance	220µF
Capacitance Tolerance	±20%
Rated Voltage	35V
Case Size	ØD10.0*L10.2mm
Ripple Current @+105°C, 100KHz	360mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz Tanδ Max.	0.12 Tanδ Max.
Leakage Current	77 (μA)max
Impedance @20℃,100KHz	0.23ohm Max.
Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	500pcs/Reel, Quantity entered must be multiple of 500
NCNR	Non-Cancelable/Non-Returnable
