35V 470µF ±20% 532mA 2K Hours 1T series

Through Hole Standard Aluminum Electrolytic Capacitors, Radial Type, 1T series, 2 Pins, Capacitance: 470µF, Tolerance ±20%, Voltage 35V, Case size: Ø8.0*L20mm, Ripple Current 532mA Max. Load Life:2000 Hours, Sleeve: PET, Operating Temp. Range -40°C ~+105°C

Key Features:
  • Series: 1T
  • Capacitance: 470µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 35V
  • Ripple Current @+105°C, 120Hz: 532mA Max.
  • Lifetime @105°C: 2000 Hours
  • Surge Volt: 44V
See Full Specification

$0.40550

Out of stock
SKU 1T477M035HFEBA
Original MPNCBE477M1VH1TF20RR
Datasheet Data Sheet

Description

Through Hole Standard Aluminum Electrolytic Capacitors, Radial Type, 1T series, 2 Pins, Capacitance: 470µF, Tolerance ±20%, Voltage 35V, Case size: Ø8.0*L20mm, Ripple Current 532mA Max. Load Life:2000 Hours, Sleeve: PET, Operating Temp. Range -40°C ~+105°C

• Through Hole Standard Aluminum Electrolytic Capacitors, Radial Type
• Long Load Life
• RoHS Complaint And Halogen Free
• Tape Package And Lead Cut 3.5~7.0mm Optional

APPLICATION

• For Standard Circuit Like Coupling Filter And Energy Storage Etc.

Specification

Series

1T
Capacitance

470µF
Capacitance Tolerance

±20%
Rated Voltage

35V

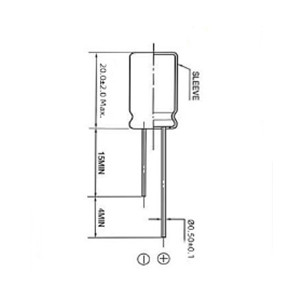

Case Size

Ø8.0*20.0mm
Ripple Current @+105°C, 120Hz

532mA Max.
Lifetime @105°C

2000 Hours
Operating Temp. Range

-40°C ~+105°C
Dissipation Factor @+105°C, 120KHz

0.14 Tanδ Max.
Surge Volt

44V
Mounting Type

Dip type, 2 pins
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

500pcs/Bag, Quantity entered must be multiple of 500
NCNR

Non-Cancelable/Non-Returnable
