Name: 35V 680µF ±20% 540mA 2K Hours UT Series
SKU: UT687M035HPNTA
Price: 2.89 USD
Availability: InStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

SMD Aluminum Electrolytic Capacitors, Wide Temperature Standard Type, UT series, 2 pads Capacitance: 680µF, Tolerance ±20%, Voltage 35V, Case size: ØD12.5*L13.5mm, Ripple Current 520mA Max.@+105℃, 120Hz, Lifetime 2000 Hours @105°C, Operating Temp. Range: -55°C ~+105°C

Key Features:

Series: UT
Capacitance: 680µF
Capacitance Tolerance: ±20%
Rated Voltage: 35V
Ripple Current @+105°C, 120Hz: 540mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current @20 °C: 238µA Max.

See Full Specification

$2.88900

1600 in stock

SKU	UT687M035HPNTA

Original MPN	CAE687M1VHUTI1CTR
Datasheet	Data Sheet

Description
Specification

Description

SMD Aluminum Electrolytic Capacitors, Wide Temperature Standard Type, UT series, 2 pads Capacitance: 680µF, Tolerance ±20%, Voltage 35V, Case size: ØD12.5*L13.5mm, Ripple Current 540mA Max.@+105℃, 120Hz, Lifetime 2000 Hours @105°C, Operating Temp. Range: -55°C ~+105°C

• Polar Aluminum Electrolytic Capacitor (Foil Type)
• High stability and reliability
• Lifetime 2000 Hours @ 105°C
• Designed Capacitor’s Quality Meets IEC60384.
• Applicable To Automatic Mounting Machine
• Cross Competitors Parts FN, FKS, MVE UUT SKV, SGV Series and more.
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly General Electronic Circuit Etc.

Specification

Series	UT
Capacitance	680µF
Capacitance Tolerance	±20%
Rated Voltage	35V

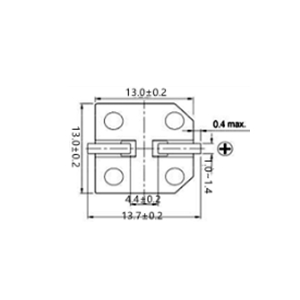

Case Size	ØD12.5*L13.5mm
Ripple Current @+105°C, 120Hz	540mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz	0.16 Tanδ Max.
Leakage Current @20 °C	238µA Max.

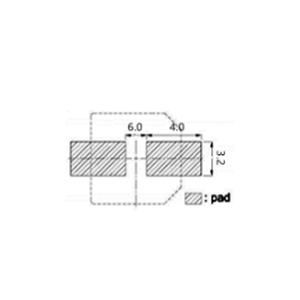

Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	200pcs/Reel, Quantity entered must be multiple of 200
NCNR	Non-Cancelable/Non-Returnable
