Name: 50V 0.1µF X7R, ±20%, MT05 Series
SKU: MT05B104M500BD
Price: 0.23 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

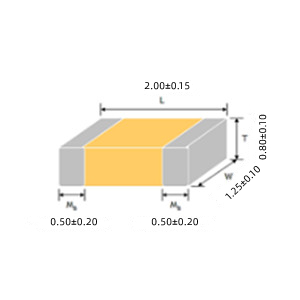

MILCC-MT05series-dimension-BD-300x300-Q0921

Multilayer Ceramic Chip Capacitors MT0805 (2012 Metric) Series, L2.00*W1.25*H0.80mm, Thickness: 0.90mm Max., Dielectric X7R, Capacitance 0.1µF, Tolerance ±20%, Rated Voltage 50V, Operating Temp. Range -55°C ~+125°C

Key Features:

Series: MT05 Series
Capacitance: 0.1µF
Capacitance Tolerance: ±20%
Case size: L2.00*W1.25*H0.80mm
Rated Voltage: 50V
Dielectric: X7R
Thickness: 0.80±0.10mm

See Full Specification

$0.22680

Out of stock

SKU	MT05B104M500BD

Original MPN	MT0805B104M500BD
Datasheet	Data Sheet

Description
Specification

Description

• RoHS III Compliant
• The MT series meet AEC-Q200 requirement.
• High capacitance in given case size
• A wide selection of sizes is available (0201 to 1210)
• Capacitor with lead-free termination (pure Tin)

APPLICATION

• For Navigation & Information equipments.
• For entertainment equipments
• For comfortable equipments
• For Automotive electronic equipment

Specification

Series	MT05 Series
Capacitance	0.1µF
Capacitance Tolerance	±20%
Case size	L2.00W1.25H0.80mm
Rated Voltage	50V
Dielectric	X7R
Thickness	0.80±0.10mm
Operating Temp. Range	-55 ~+125°C
Mounting Type	SMD type, 2 Pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	4000pcs/Reel, Quantity entered must be multiple of 4000
NCNR	Non-Cancelable/Non-Returnable
