50V 2.2µF ±20% 2.2ohm 53mA 5K Hours GT series

Through Hole Low Impedance Aluminum Electrolytic Capacitors, Radial Type, GT series, 2 Pins, Capacitance: 2.2µF, Tolerance ±20%, Voltage 50V, Case size: Ø5.0*L11mm, Ripple Current 53mA, Max. Impedance: 2.2Ω, Load Life:5000 Hours, Sleeve: PET, Operating Temp. Range -40°C ~+105°C

Key Features:
  • Series: GT
  • Capacitance: 2.2µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 50V
  • Impedance @100KHz/20°C: 2.2ohm Max.
  • Lifetime @105°C: 5000 Hours
  • Surge Volt: 63V
See Full Specification

$0.11550

Out of stock
SKU GT225M050HDABA
Original MPNCBE225M1HHGTD11RR
Datasheet Data Sheet

Description

Through Hole Low Impedance Aluminum Electrolytic Capacitors, Radial Type, GT series, 2 Pins, Capacitance: 2.2µF, Tolerance ±20%, Voltage 50V, Case size: Ø5.0*L11mm, Ripple Current 53mA, Max. Impedance: 2.2Ω, Load Life:5000 Hours, Sleeve: PET, Operating Temp. Range -40°C ~+105°C

• Through Hole Low Impedance Aluminum Electrolytic Capacitors, Radial Type
• Long Load Life
• RoHS Complaint And Halogen Free
• Tape Package And Lead Cut 3.5~7.0mm Optional

APPLICATION

• For Standard Circuit Like Coupling Filter And Energy Storage Etc.

Specification

Series

GT
Capacitance

2.2µF
Capacitance Tolerance

±20%
Rated Voltage

50V
Impedance @100KHz/20°C

2.2ohm Max.

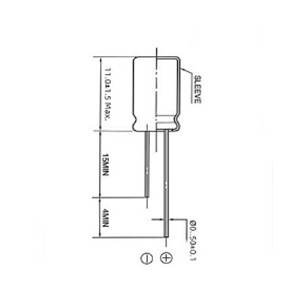

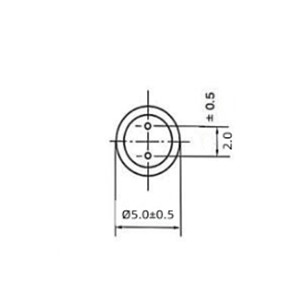

Case Size

Ø5.0*L11mm
Ripple Current @+105°C, 100KHz

53mA Max.
Lifetime @105°C

5000 Hours
Operating Temp. Range

-40°C ~+105°C
Dissipation Factor @+105°C, 120KHz

0.10 Tanδ Max.
Surge Volt

63V
Mounting Type

Dip type, 2 pins
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

500pcs/Bag, Quantity entered must be multiple of 500
NCNR

Non-Cancelable/Non-Returnable
