Name: 50V 220µF ±20% 0.25 ohm Max. 450mA 2K hours UZ Series
SKU: UZ227M050HGKTA
Price: 1.59 USD
Availability: InStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

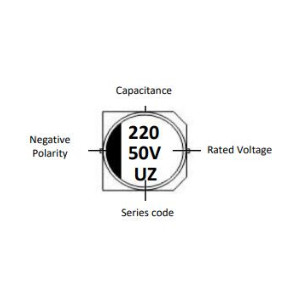

SMD Aluminum Electrolytic Capacitors, Extra low Impedance type UZ series, 2 pads Capacitance: 220µF, Tolerance ±20%, Voltage 50V, Case size: ØD10.0*L10.20mm, Impedance 0.25 Ohm., Ripple Current: 450mA Max. @+105℃, 100KHz, Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

Key Features:

Series: UZ
Capacitance: 220µF
Capacitance Tolerance: ±20%
Rated Voltage: 50V
Impedance @20℃,100KHz: 0.25ohm Max.
Ripple Current @+105°C, 100KHz: 450mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current: 110 (μA)max

See Full Specification

$1.58880

53000 in stock

SKU	UZ227M050HGKTA

Original MPN	CAE227M1HHUZGJ2TR
Datasheet	Data Sheet

Description
Specification

Description

• Polar Aluminum Electrolytic Capacitor (Foil Type)
• High stability and reliability
• Lifetime 2000 Hours @ 105°C
• Designed Capacitor’s Quality Meets IEC60384.
• Applicable To Automatic Mounting Machine
• Cross Competitors Parts and more.
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly General Electronic Circuit, such as power supply, lighting, etc

Specification

Series	UZ
Capacitance	220µF
Capacitance Tolerance	±20%
Rated Voltage	50V
Case Size	Ø10.0*L10.2mm
Impedance @20℃,100KHz	0.25ohm Max.
Ripple Current @+105°C, 100KHz	450mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Leakage Current	110 (μA)max
Dissipation Factor @+105°C, 100KHz	0.10 Tanδ Max.
Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	500pcs/Reel, Quantity entered must be multiple of 500
NCNR	Non-Cancelable/Non-Returnable
