RES, SMD, 301Ω, ±0.1%, 1/10W, 0805

Thin Film Chip Resistors, 0805 (2012 Metric), UR05 Series, Dimension L2.00*W1.25*H0.50mm, 2 Terminations, Tolerance: ±0.1%, Resistance 301 ohm, Dissipation Max. 1/10W @ 70℃, Temperature Coefficient Rate (TCR) Max. ±25ppm/°C ,Operating Temp. Range -55°C ~+155°C

Key Features:
  • Series: 0805 (2012 Metric) Series
  • Dissipation: 1/10W Max.
  • Resistance Tolerance: ±0.1%

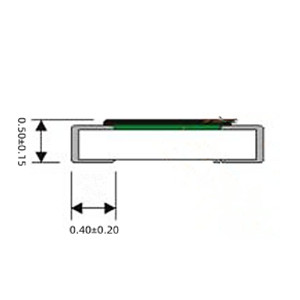

  • Case size: L2.00*W1.25*H0.50mm
  • Operation Voltage: 100V Max.
  • Resistance Range: 301 ohm
  • Temperature Coefficient Rate: ±25ppm/°C Max.
See Full Specification

$0.23700

Out of stock
SKU CRUR05BB301RS1
Original MPNUR05BB301R
Datasheet Data Sheet

Description

Thin Film Chip Resistors, 0805 (2012 Metric), UR05 Series, Dimension L2.00*W1.25*H0.50mm, 2 Terminations, Tolerance: ±0.1%, Resistance 301 ohm, Dissipation Max. 1/10W @ 70℃, Temperature Coefficient Rate (TCR) Max. ±25ppm/°C ,Operating Temp. Range -55°C ~+155°C

• SMD metal film resistor
• High reliability and stability of 0.25% and below per customer request
• High performance of TCR: 50 & 25 ppm/C° and below per customer request
• Low current noise
• RoHS compliant and lead free

APPLICATION

• Medical equipment
• Measuring instrument
• Communication device
• Computer / Printer

Specification

Series

0805 (2012 Metric) Series
Dissipation

1/10W Max.
Resistance Tolerance

±0.1%
Case size

L2.00*W1.25*H0.50mm
Operation Voltage

100V Max.
Overload Voltage

200V Max.
Resistance Range

301 ohm
Temperature Coefficient Rate

±25ppm/°C Max.
Operating Temp. Range

-55°C ~+155°C
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

5000pcs/Reel, Quantity entered must be multiple of 5000
NCNR

Non-Cancelable/Non-Returnable
